NASA Scientists Are Turning LA Into One Big Climate-Change Lab

Lazers, mechanical lungs, and the quest to better understand cities’ carbon emissions.

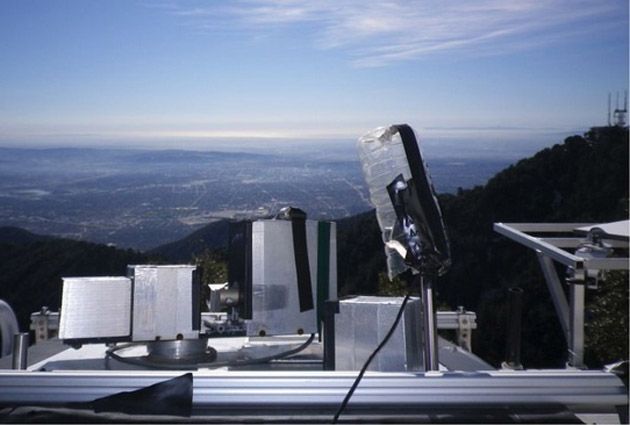

Los Angeles on a "clear" day, as seen from atop the CLARS monitoring station, which remotely tests the atmosphere above more than two-dozen points in the Los Angeles Basin.John Metcalfe

This story first appeared on The Atlantic Cities website as part of the Climate Desk collaboration.

Southern California’s Mount Wilson is a lonesome, hostile peak—prone to sudden rock falls, sometimes ringed by wildfire—that nevertheless has attracted some of the greatest minds in modern science.

George Ellery Hale, one of the godfathers of astrophysics, founded the Mount Wilson Observatory in 1904 and divined that sunspots were magnetic. His acolyte Edwin Hubble used a huge telescope, dragged up by mule train, to prove the universe was expanding. Even Albert Einstein made a pilgrimage in the 1930s to hobnob with the astronomers (and suffered a terrible hair day, a photo shows).

Today, Mount Wilson is the site of a more terrestrial but no less ambitious endeavor. Scientists from NASA’s Jet Propulsion Laboratory in Pasadena, Calif., and elsewhere are turning the entire Los Angeles metro region into a state-of-the-art climate laboratory. From the ridgeline, they deploy a mechanical lung that senses airborne chemicals and a unique sunbeam analyzer that scans the skies over the Los Angeles Basin. At a sister site at the California Institute of Technology (Caltech), researchers slice the clouds with a shimmering green laser, trap air samples in glass flasks, and stare at the sun with a massive mirrored contraption that looks like God’s own microscope.

These folks are the foot soldiers in an ambitious, interagency initiative called the Megacities Carbon Project. They’ve been probing L.A.’s airspace for more than a year, with the help of big-name sponsors like the National Institute of Standards and Technology, the Keck Institute for Space Studies, and the California Air Resources Board. If all goes well, by 2015 the Megacities crew and colleagues working on smaller cities such as Indianapolis and Boston will have pinned down a slippery piece of climate science: an empirical measurement of a city’s carbon footprint.

If that doesn’t sound like something Einstein would scarf down energy bars and hoof up a mountain to check out, give it time. It promises to be a groundbreaking development in the worldwide fight against global warming.

men at an observatory

Part of the Megacities team at the CLARS facility in Pasadena. Left to right: Thomas Pongetti, Riley Duren, Eric Kort, Stan Sander. John Metcalfe

Historically, researchers have tried to understand anthropogenic global warming by looking at it from the big picture—first across the planet, then by regions and countries. But two things happened in the past few years that turned their frame of reference. First, they realized that the emissions of a large landmass are extremely difficult to measure. The signal from fossil fuels gets tangled up in a bunch of other things, such as byproducts from the natural ecosystem and agriculture.

Second, they encountered a rash of enthusiasm-killing gridlock in the United States government, with the 2009 Copenhagen climate talks ending in a muddle and a 2010 cap-and-trade bill dying in the Senate. It became clear to environmental stakeholders that if any policy was going to happen on cutting emissions, it was going to be at the scale of states and cities.

Nobody is really testing greenhouse gases above cities on a focused, long-term basis.

So climate scientists began to sniff around megalopolises. It makes sense: That’s where all the people and resources are. They now suspect that cities are some of the worst offenders when it comes to generating greenhouse gases, especially so-called megacities with more than 10 million residents, like Los Angeles, New York, Tokyo, and Mumbai. Urban areas and their enabling power plants are thought to pump out about 70 percent of humankind’s total fossil-fuel emissions.

Cities will only become more important in the climate debate as the years roll by. With the world’s urban population expected to nearly double by 2050, the boom in development could release a flood of greenhouse gas, as more city dwellers torch colossal quantities of coal and oil to power their cars, feed their stoves, and crank their air conditioners. Of course, many studies indicate that city dwellers create a lesser environmental footprint per person than their suburban counterparts, as urbanites tend to take mass transit and live in smaller homes. But cities, being small and potent geysers of greenhouse gases, are an ideal place to target solutions.

That’s why we should have begun studying urban emissions yesterday, says Riley Duren, chief systems engineer at the Jet Propulsion Lab and manager of the Megacities project. In his past life, the Alabama native helped in the hunt for Earthlike planets on NASA’s Kepler mission. But a period of soul searching told him it would be better to focus on the home planet. “I was becoming increasingly motivated by climate-change inaction,” he says. “I just convinced myself… that this was the biggest thing an engineer could work on.”

It’s a complex problem. A major issue is that governments estimate the volume of emissions with indirect measurements, such as tracking the carbon output of power plants or surveying the number of people riding mass transit or buying gasoline. Nobody is really testing greenhouse gases above cities on a focused, long-term basis, which is crucial in verifying whether the measurements urban governments use to make policy decisions are accurate.

To control and reduce fossil-fuel emissions, “you have to be able to know what you’re emitting to keep track,” says Ralph Keeling, director of the Scripps CO2 Program at the Scripps Institution of Oceanography. “There are various ways to do that, but they’re all fraught with uncertainties. … An attractive way to do it is to see what’s happening in the atmosphere. The atmosphere can’t lie.”

Los Angeles’ municipal government has a natural interest in this line of inquiry. Since it adopted a climate plan in 2007, the city has met Kyoto Protocol reduction targets in part by taking thousands of diesel trucks off the road and screwing energy-saving LED bulbs into 140,000 streetlights. Officials want to cut emissions 35 percent from 1990 levels by 2030, and to do that they’re going to need a good verification system.

The Megacities project “will show that there is a significant impact in what we do,” says Romel Pascual, Los Angeles’ deputy mayor for the environment. “When we talk about L.A. being green, people roll their eyes. They won’t believe it, right? That’s because of the history of L.A. But when you look at the numbers of us hitting major milestones, L.A. is near the top.”

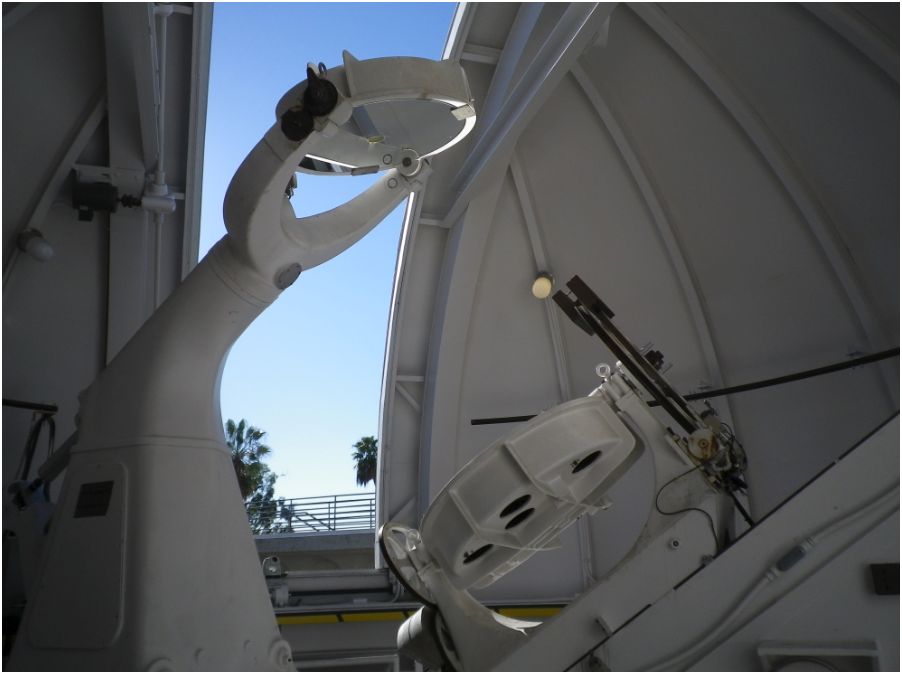

spectrometer at Caltech

This is a Solar Fourier Transform Spectrometer at Caltech, which scientists are using to study greenhouse gases. John Metcalfe

One morning in January 2013, I pile into a Toyota Prius with Duren and Megacities colleagues Stan Sander and Eric Kort and take a spin up the rock-strewn roads of Mount Wilson. The trees are all scorched and leafless from the last forest fire, so there’s an excellent view of the smog. It looks like a volcano vomited up an ocean of brown foulness that spread over the L.A. Basin and now is lapping against the foothills of the San Gabriel Mountains.

In many ways, Los Angeles is an excellent place to kick off a new campaign to heal our feverish atmosphere. The city’s terrible air quality has long cried out for intervention. When the first major smog crisis appeared during World War II, it was so bad that people thought the Japanese were bombarding them with poison gas. “Your lungs would completely ache. It would take hours for the pain to go away,” remembers Sander, who grew up nearby. “It was so bad that rubber tires would crack, because ozone attacks rubber.”

The Greater Los Angeles Area of the 21st century is home to 19 million people living among 34,000 square miles of clunky concrete buildings, griddle-hot parking lots, and sad spits of green space. It’s not only America’s smoggiest region but also a breeder reactor for greenhouse gases. Prodigious plumes of carbon dioxide waft up from car-clotted highways and belch from factory smokestacks. Methane pours from landfills, sewage-treatment plants, and large dairies to the east (a contented cow can produce hundreds of liters of methane daily). And although they’ve cut emissions greatly, the ports of Los Angeles and Long Beach are still powerful emitters, with their bunker fuel-burning cargo ships, bulky loading cranes, and busy dockside traffic.

On a typical morning, ocean breezes blow this noxious chemical gumbo into the mountains to the east. There, at the pinnacle of Mount Wilson, the vapors seethe at the doorstep of a curious object called the California Laboratory for Atmospheric Remote Sensing, or CLARS.

The observatory is a big white dome with a furry black fringe running around its base, like a mustacheod R2-D2, sitting atop a shipping container. The container was dropped onto the mountaintop several years ago by helicopter, and today it’s outfitted with scads of high-priced equipment and a technician who lurks in the gloom. Every couple of minutes, the dome whirs and spins to point at a distant target below. A mirror in its curvature reflects a sliver of sunlight downward, where a spectrometer dissects it into different elements. The dome then whirs to the next point in its 27-spot rotation around the basin.

In its constant roving, CLARS is building a map of how emissions move throughout the city. Its efficiency is hard to fault. “The advantage is, I can point to anywhere and get a map of the whole basin essentially in an hour and a half,” says Sander, who oversees the machine, “whereas if you had a network of ground monitoring stations, you’d have to have 50 or some large number of them to get similar information.”

Scientists had expected emissions to be fairly uniform, given the region’s flat topography. But CLARS picked up a number of hot spots with abnormally high concentrations of methane—an incredibly potent climate-change agent—in north Orange County and the City of Industry. The Megacities people are just beginning to identify the vapor sources for these anomalous zones.

“The L.A. Basin is very geologically active,” says Sander. “You’ve probably heard of the La Brea Tar Pits? That’s an area where there are a lot of organisms that anaerobically produce methane.” Methane escaping through these ground seeps is one theory, anyway. Sander also suspects the labyrinthine network of tubes that ferries natural gas through town. “There are millions of miles of little pipes that go from distribution stations to people’s houses,” he says. A lot of them leak, and “the leaks can be very substantial.”

Emissions of questionable origin are called fugitive emissions, and they account for a decent-sized hunk of any city’s overall greenhouse-gas output. L.A. officials estimate that the city’s yearly carbon footprint weighs 39 million tons, with this breakdown: 43 percent vehicle emissions, 21 percent commercial buildings, 19 percent municipal energy use, 16 percent “industrial fugitive or other,” and 1 percent wastewater.

That 16 percent is a little fuzzy because, again, emitters are judging their output using models. “That’s the best they can do,” Duren says. “Then we might come along with atmospheric measurements and go, ‘Oh, actually you’re underestimating it by a factor of two.'”

Behind the CLARS facility is a rattling, wheezing shed that houses a Picarro, an air-sampling device that displays real-time readings of ambient gases. Sander looks concerned over a sudden spike in CO2 on the machine’s monitor, then realizes it’s simply us, exhaling.

This is another component of Megacities’ full-court press: a network of a dozen or so Picarros going up this year in different L.A. neighborhoods, where they will ceaselessly inspect the air for greenhouse gas. A planned satellite component adds another layer of detection.

Only one spacecraft in orbit right now is monitoring greenhouse gases, Japan’s Gosat (Greenhouse Gases Observing Satellite), and its resolution isn’t good enough to give an accurate picture of a city’s emissions. But in the next few years, NASA plans to launch the Orbiting Carbon Observatory (OCO-2) satellite and install a new instrument (OCO-3) on the International Space Station. Both devices will periodically take snapshots of the “chemical weather” over population centers. “OCO-3 will have a ‘city mode’ where it rapidly starts sweeping back and forth like a whisk broom,” says Duren. He expects the satellite to take some 3,000 samples over a city in just a few seconds.

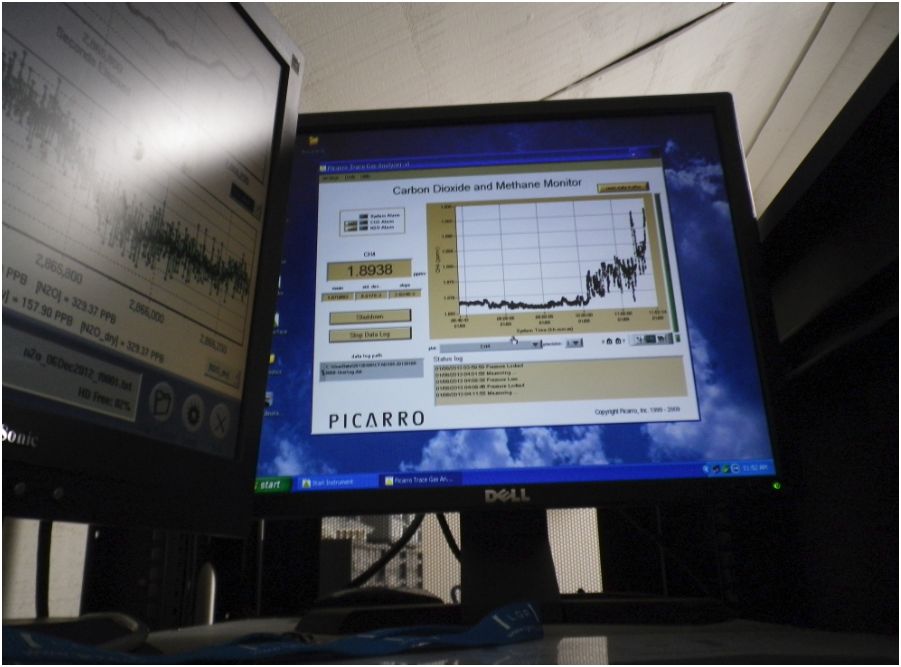

computer screen

A Picarro sampler sniffs the air on Mount Wilson for C02, methane and other potent climate-altering emissions. It’s one of many Picarros going up around Los Angeles as part of the Megacities ground-based climate science network. John Metcalfe

With this bulging grab bag of equipment, the Megacities team hopes to sculpt a model of L.A.’s emissions so detailed that they’ll be able to pull out individual signatures, such as exactly what and how much is spewing from rush-hour traffic or the port system or large landfills. Once they get an emissions baseline for Los Angeles, they hope to assist other cities in starting their own climate-reading networks.

Duren’s team is already coordinating with French scientists running a Megacities sister project in Paris. (Researchers had to move a Picarro on the Eiffel Tower because its readings were skewed by steamy tourist lung vapors.) The Americans are also trying to link up with a third group in São Paulo, Brazil, which has long battled heavy air pollution.

The idea is to prepare a set of climate archetypes that can be applied to different megacities. The L.A. area is on the ocean, ringed by mountains, and often holds emissions in place like a lidded bowl. Perhaps what the Megacities team learns about emissions here will also apply in Mumbai, India, which has a similar geography. In contrast, Paris’ layout makes emissions rise in a wind-blown plume.

“The idea for the project is, we pick a representative number of cities that are these different archetypes,” says Duren, “and if we can characterize them with this giant laboratory, if you will… you’ve got a system that you can apply with confidence, everywhere.”

To what end, ultimately?

The goal is to one day have a comprehensive network for sensing greenhouse gases in all the major cities across America or even the world. With that in place, an obvious application would be capping sources of fugitive emissions. An eagle-eyed satellite might detect roiling leaks in natural-gas pipes caused by aging infrastructure, or disasters like hurricanes and earthquakes. Then cities could prioritize repair crews accordingly.

If the researchers can extract the signature of freeway traffic, it could instruct a municipality how and where to build future roads, enact tolls, or allot carpool lanes. It could also alter the dialogue of commuting: If you reside in the suburbs but drive through a city every day to work, are you somehow on the hook financially or morally for spewing fumes into the greater urban cloud? That issue matters in Los Angeles, where regional commuters arguably bear environmental responsibilities “even if they don’t live in L.A.,” says Pascual of the mayor’s office.

As the outlines of our individual footprints become clearer, perhaps the Megacities legacy could even motivate some of us to pull the old bike out of storage instead of reaching for the car keys.

“I guess people are aware that when they use their cars, there’s something coming out of the exhaust pipes. But because they can’t see it, they don’t really have a feeling for how much is coming out,” says Scripps’ Keeling. “That’s created a bit of complacency.”

This essay appears in the ebook “City 2.0: The Habitat of the Future and How to Get There,” co-produced in partnership by The Atlantic Cities and TED Books.
